: Header for main.c file. This file contains the common defines of the application. More...

#include "stm32f4xx_hal.h"

Include dependency graph for main.h:

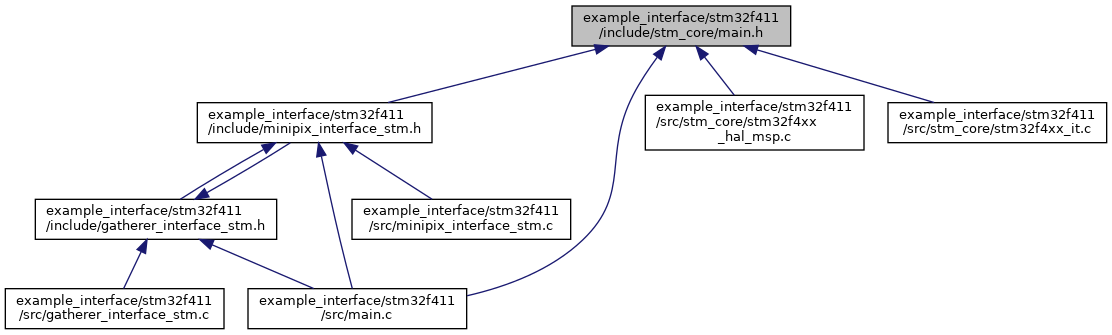

This graph shows which files directly or indirectly include this file:

Macros
#define	B1_Pin GPIO_PIN_13

#define	B1_GPIO_Port GPIOC

#define	USART_TX_Pin GPIO_PIN_2

#define	USART_TX_GPIO_Port GPIOA

#define	USART_RX_Pin GPIO_PIN_3

#define	USART_RX_GPIO_Port GPIOA

#define	LD2_Pin GPIO_PIN_5

#define	LD2_GPIO_Port GPIOA

#define	TMS_Pin GPIO_PIN_13

#define	TMS_GPIO_Port GPIOA

#define	TCK_Pin GPIO_PIN_14

#define	TCK_GPIO_Port GPIOA

#define	SWO_Pin GPIO_PIN_3

#define	SWO_GPIO_Port GPIOB

Functions
void	Error_Handler (void)
	This function is executed in case of error occurrence. More...

void	USART_IDLECallback (UART_HandleTypeDef *huart)

Detailed Description

: Header for main.c file. This file contains the common defines of the application.

Attention

© Copyright (c) 2021 STMicroelectronics. All rights reserved.

This software component is licensed by ST under BSD 3-Clause license, the "License"; You may not use this file except in compliance with the License. You may obtain a copy of the License at: opensource.org/licenses/BSD-3-Clause

Macro Definition Documentation

◆ B1_GPIO_Port

#define B1_GPIO_Port GPIOC

◆ B1_Pin

#define B1_Pin GPIO_PIN_13

◆ LD2_GPIO_Port

#define LD2_GPIO_Port GPIOA

◆ LD2_Pin

#define LD2_Pin GPIO_PIN_5

◆ SWO_GPIO_Port

#define SWO_GPIO_Port GPIOB

◆ SWO_Pin

#define SWO_Pin GPIO_PIN_3

◆ TCK_GPIO_Port

#define TCK_GPIO_Port GPIOA

◆ TCK_Pin

#define TCK_Pin GPIO_PIN_14

◆ TMS_GPIO_Port

#define TMS_GPIO_Port GPIOA

◆ TMS_Pin

#define TMS_Pin GPIO_PIN_13

◆ USART_RX_GPIO_Port

#define USART_RX_GPIO_Port GPIOA

◆ USART_RX_Pin

#define USART_RX_Pin GPIO_PIN_3

◆ USART_TX_GPIO_Port

#define USART_TX_GPIO_Port GPIOA

◆ USART_TX_Pin

#define USART_TX_Pin GPIO_PIN_2

Function Documentation

◆ Error_Handler()

void Error_Handler ( void )

This function is executed in case of error occurrence.

Return values

None

◆ USART_IDLECallback()

void USART_IDLECallback ( UART_HandleTypeDef * huart )
