#include <llcp_minipix_messages.h>
#include <llcp.h>
#include <stdint.h>
#include <stdbool.h>

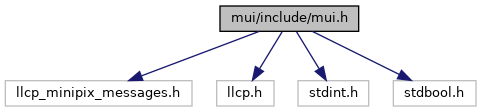

Include dependency graph for mui.h:

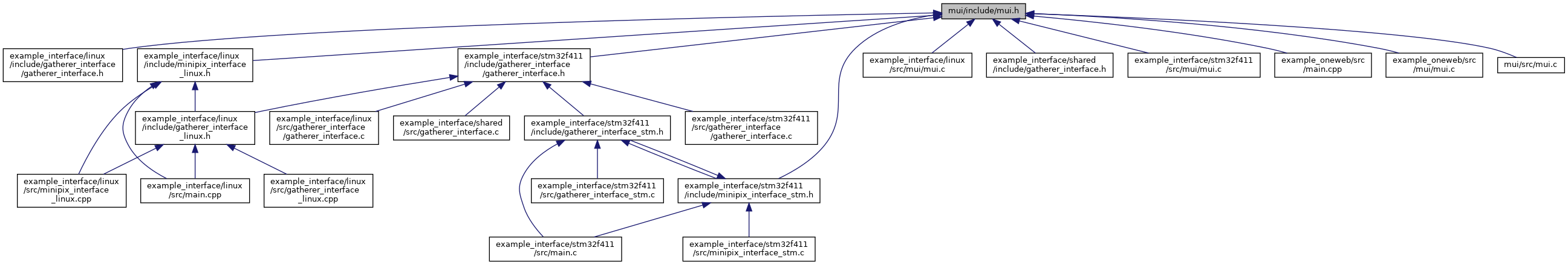

This graph shows which files directly or indirectly include this file:

Data Structures
struct	MUI_FcnPrototypes_t
	Structure containing pointers to user callbacks. User shouls provide implementations to all the listed functions. More...

struct	MUI_Handler_t

Macros
#define	MUI_USER_HANDSHAKES 0

#define	MUI_SEND_STRING 0

#define	MUI_SEND_CHAR 0

Typedefs
typedef void(*	mui_ledSetHW_t) (const bool)
	Function pointer for implementation of seting an LED state. More...

typedef void(*	mui_sendChar_t) (const uint8_t char_out)
	Function pointer for implementaion of sending a char (byte) over a serial line to MiniPIX. More...

typedef void(*	mui_sendString_t) (const uint8_t *str_out, const uint16_t len)
	Function pointer for implementation of sending a string (array of bytes) over a serial line to MiniPIX. More...

typedef void(*	mui_processFrameData_t) (const LLCP_FrameData_t *image_data)
	Function pointer to user implementation of callback to process incoming Frame data. More...

typedef void(*	mui_processFrameMeasurementFinished_t) (void)
	Function pointer to user implementation of callback to process message regarding that a measurement was finished. More...

typedef void(*	mui_processFrameDataTerminator_t) (const LLCP_FrameDataTerminator_t *terminator)
	Function pointer to user implementation of callback to process incoming Frame data terminator (the last packet). More...

typedef void(*	mui_processStatus_t) (const LLCP_Status_t *status_data)
	Function pointer to user implementation of callback to process incoming Status message. More...

typedef void(*	mui_processTemperature_t) (const LLCP_Temperature_t *temperature_data)
	Function pointer to user implementation of callback to process incoming Temperature message. More...

typedef void(*	mui_processAck_t) (const LLCP_Ack_t *ack_data)
	Function pointer to user implementation of callback to process incoming Ack message. More...

typedef void(*	mui_processMinipixError_t) (const LLCP_MinipixError_t *error_data)
	Function pointer to user implementation of callback to process incoming MiniPIX error message. More...

typedef void(*	mui_sleepHW_t) (const uint16_t duration)
	Function pointer for implementation of a sleep function. More...

Functions
void	mui_initialize (MUI_Handler_t *mui_handler)
	The "constructor" of the MUI handler. Should be called by the user just after allocating it. More...

void	mui_pwr (MUI_Handler_t *mui_handler, const bool state)
	Command to power on/off the Timepix3 chip. More...

void	mui_measureFrame (MUI_Handler_t *mui_handler, const uint16_t acquisition_time, const uint8_t mode)
	Command to acquire a frame over a period of the acquisition_time. As a result, the MiniPIX will start obtaning data and will call the processFrameData() function will be called. More...

void	mui_getFrameData (MUI_Handler_t *mui_handler)
	Command to request measured frame data. As a result, the MiniPIX will start obtaning data and will call the processFrameData() function will be called. More...

void	mui_setThreshold (MUI_Handler_t *mui_handler, const uint16_t threshold_coarse, const uint16_t threshold_fine)
	Command to set energy threshold. More...

void	mui_setConfigurationPreset (MUI_Handler_t *mui_handler, const uint8_t preset)
	Command to set configuration preset. More...

void	mui_updatePixelMask (MUI_Handler_t mui_handler, LLCP_UpdatePixelMaskReq_t data)
	Command to update a mask of a particular pixel. More...

void	mui_getStatus (MUI_Handler_t *mui_handle)
	Command to get the status of the MinixPIX HW. As a result, the method processStatus() will get called. More...

void	mui_getTemperature (MUI_Handler_t *mui_handle)
	Command to get the temperature of the MinixPIX HW. As a result, the method processTemperature() will get called. More...

void	mui_receiveCharCallback (MUI_Handler_t *mui_handler, const uint8_t byte_in)
	Called by the user with every incoming byte on the UART to the MiniPIX. More...

void	mui_update (MUI_Handler_t *mui_handler)
	Called by the user to led MUI do stuff in the background. Should be called regularly, e.g., in the main() loop or in a timer's callback. More...

void	mui_sendAck (MUI_Handler_t *mui_handler, const bool success)
	Sends ack to the MiniPIX. Not to be called by the user. More...

void	mui_sendMessage (MUI_Handler_t mui_handler, const uint8_t message, const uint16_t len)
	Abstraction above sending a message. Will use either sendString or sendChar basend on configuration. More...

void	mui_ledSet (MUI_Handler_t *mui_handler, const bool new_state)
	set LED state More...

void	mui_ledToggle (MUI_Handler_t *mui_handler)
	toggle the state of the LED More...

Macro Definition Documentation

◆ MUI_SEND_CHAR

#define MUI_SEND_CHAR 0

◆ MUI_SEND_STRING

#define MUI_SEND_STRING 0

◆ MUI_USER_HANDSHAKES

#define MUI_USER_HANDSHAKES 0

Typedef Documentation

◆ mui_ledSetHW_t

typedef void(* mui_ledSetHW_t) (const bool)

Function pointer for implementation of seting an LED state.

Parameters

true	= light is on, false = light is of

◆ mui_processAck_t

typedef void(* mui_processAck_t) (const LLCP_Ack_t *ack_data)

Function pointer to user implementation of callback to process incoming Ack message.

Parameters

pointer to the structure with the data

◆ mui_processFrameData_t

typedef void(* mui_processFrameData_t) (const LLCP_FrameData_t *image_data)

Function pointer to user implementation of callback to process incoming Frame data.

Parameters

pointer to the structure with the data

◆ mui_processFrameDataTerminator_t

typedef void(* mui_processFrameDataTerminator_t) (const LLCP_FrameDataTerminator_t *terminator)

Function pointer to user implementation of callback to process incoming Frame data terminator (the last packet).

Parameters

pointer to the structure with the data

◆ mui_processFrameMeasurementFinished_t

typedef void(* mui_processFrameMeasurementFinished_t) (void)

Function pointer to user implementation of callback to process message regarding that a measurement was finished.

◆ mui_processMinipixError_t

typedef void(* mui_processMinipixError_t) (const LLCP_MinipixError_t *error_data)

Function pointer to user implementation of callback to process incoming MiniPIX error message.

Parameters

pointer to the structure with the data

◆ mui_processStatus_t

typedef void(* mui_processStatus_t) (const LLCP_Status_t *status_data)

Function pointer to user implementation of callback to process incoming Status message.

Parameters

pointer to the structure with the data

◆ mui_processTemperature_t

typedef void(* mui_processTemperature_t) (const LLCP_Temperature_t *temperature_data)

Function pointer to user implementation of callback to process incoming Temperature message.

Parameters

pointer to the structure with the data

◆ mui_sendChar_t

typedef void(* mui_sendChar_t) (const uint8_t char_out)

Function pointer for implementaion of sending a char (byte) over a serial line to MiniPIX.

Parameters

byte to send

◆ mui_sendString_t

typedef void(* mui_sendString_t) (const uint8_t *str_out, const uint16_t len)

Function pointer for implementation of sending a string (array of bytes) over a serial line to MiniPIX.

Parameters

str_out	poiter to the first element of the byte array
len	the number of bytes to send

◆ mui_sleepHW_t

typedef void(* mui_sleepHW_t) (const uint16_t duration)

Function pointer for implementation of a sleep function.

Parameters

duration time to sleep in milliseconds

Function Documentation

◆ mui_getFrameData()

void mui_getFrameData ( MUI_Handler_t * mui_handler )

Command to request measured frame data. As a result, the MiniPIX will start obtaning data and will call the processFrameData() function will be called.

Parameters

mui_handler

◆ mui_getStatus()

void mui_getStatus ( MUI_Handler_t * mui_handle )

Command to get the status of the MinixPIX HW. As a result, the method processStatus() will get called.

Parameters

mui_handle

◆ mui_getTemperature()

void mui_getTemperature ( MUI_Handler_t * mui_handle )

Command to get the temperature of the MinixPIX HW. As a result, the method processTemperature() will get called.

Parameters

mui_handle

◆ mui_initialize()

void mui_initialize ( MUI_Handler_t * mui_handler )

The "constructor" of the MUI handler. Should be called by the user just after allocating it.

Parameters

mui_handler

◆ mui_ledSet()

void mui_ledSet	(	MUI_Handler_t *	mui_handler,
		const bool	new_state
	)

set LED state

Parameters

mui_handler
new_state	true = light is on, false = light is off

◆ mui_ledToggle()

void mui_ledToggle ( MUI_Handler_t * mui_handler )

toggle the state of the LED

Parameters

mui_handler

◆ mui_measureFrame()

void mui_measureFrame	(	MUI_Handler_t *	mui_handler,
		const uint16_t	acquisition_time,
		const uint8_t	mode
	)

Command to acquire a frame over a period of the acquisition_time. As a result, the MiniPIX will start obtaning data and will call the processFrameData() function will be called.

Parameters

mui_handler
acquisition_time	Acquisition time in milliseconds
mode	pixel measurement mode: LLCP_TPX3_PXL_MODE_{TOA_TOT,TOA,MPX_ITOT}

◆ mui_pwr()

void mui_pwr	(	MUI_Handler_t *	mui_handler,
		const bool	state
	)

Command to power on/off the Timepix3 chip.

Parameters

mui_handler
state	true/false, power on/off

◆ mui_receiveCharCallback()

void mui_receiveCharCallback	(	MUI_Handler_t *	mui_handler,
		const uint8_t	byte_in
	)

Called by the user with every incoming byte on the UART to the MiniPIX.

Parameters

mui_handler
byte_in

◆ mui_sendAck()

void mui_sendAck	(	MUI_Handler_t *	mui_handler,
		const bool	success
	)

Sends ack to the MiniPIX. Not to be called by the user.

Parameters

mui_handler
success

◆ mui_sendMessage()

void mui_sendMessage	(	MUI_Handler_t *	mui_handler,
		const uint8_t *	message,
		const uint16_t	len
	)

Abstraction above sending a message. Will use either sendString or sendChar basend on configuration.

Parameters

mui_handler
message	the string to send
len	how many bytes to send

◆ mui_setConfigurationPreset()

void mui_setConfigurationPreset	(	MUI_Handler_t *	mui_handler,
		const uint8_t	preset
	)

Command to set configuration preset.

Parameters

mui_handler
preset

◆ mui_setThreshold()

void mui_setThreshold	(	MUI_Handler_t *	mui_handler,
		const uint16_t	threshold_coarse,
		const uint16_t	threshold_fine
	)

Command to set energy threshold.

Parameters

mui_handler
threshold

◆ mui_update()

void mui_update ( MUI_Handler_t * mui_handler )

Called by the user to led MUI do stuff in the background. Should be called regularly, e.g., in the main() loop or in a timer's callback.

Parameters

mui_handler

◆ mui_updatePixelMask()

void mui_updatePixelMask	(	MUI_Handler_t *	mui_handler,
		LLCP_UpdatePixelMaskReq_t *	data
	)

Command to update a mask of a particular pixel.

Parameters

mui_handler
LLCP_UpdatePixelMaskReq_t
