pixel_encoder.h File Reference

#include <stdint.h>
#include <llcp_minipix_messages.h>

Include dependency graph for pixel_encoder.h:

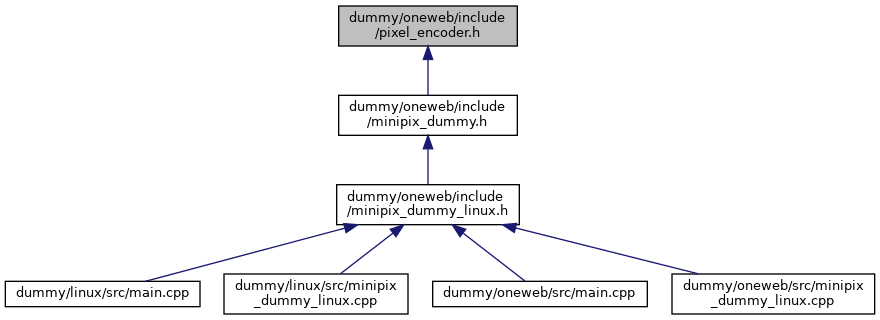

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	MAX_LUT_EVENT   16
#define	MAX_LUT_TOT   1024
#define	MAX_LUT_ITOT   16384
#define	MAX_LUT_TOA   16384
#define	WRONG_LUT_EVENT   15
#define	WRONG_LUT_TOT   1023
#define	WRONG_LUT_ITOT   16383
#define	WRONG_LUT_TOA   16383

Enumerations
enum	TPX3PixelMode_t {   TPX3_TOA_TOT, TPX3_TOA, TPX3_MPX_ITOT, TPX3_TOA_TOT,   TPX3_TOA, TPX3_MPX_ITOT, TPX3_TOA_TOT, TPX3_TOA,   TPX3_MPX_ITOT, TPX3_TOA_TOT, TPX3_TOA, TPX3_MPX_ITOT }

Functions
void	encodePixelData (uint8_t *data, const uint8_t col_shift_num, const TPX3PixelMode_t pixel_mode)
	encoders pixel data from the RAW form recorded by the timepix More...

Variables
const int16_t	LUT_EVENT [16]
const uint16_t	LUT_ITOT [16384]
const uint16_t	LUT_TOA [16384]
const uint16_t	LUT_TOT [1024]
const uint16_t	LUT_COLSHIFTS [1280]

Macro Definition Documentation

MAX_LUT_EVENT

#define MAX_LUT_EVENT   16

MAX_LUT_ITOT

#define MAX_LUT_ITOT   16384

MAX_LUT_TOA

#define MAX_LUT_TOA   16384

MAX_LUT_TOT

#define MAX_LUT_TOT   1024

WRONG_LUT_EVENT

#define WRONG_LUT_EVENT   15

WRONG_LUT_ITOT

#define WRONG_LUT_ITOT   16383

WRONG_LUT_TOA

#define WRONG_LUT_TOA   16383

WRONG_LUT_TOT

#define WRONG_LUT_TOT   1023

Enumeration Type Documentation

TPX3PixelMode_t

enum TPX3PixelMode_t

Enumerator
TPX3_TOA_TOT
TPX3_TOA
TPX3_MPX_ITOT
TPX3_TOA_TOT
TPX3_TOA
TPX3_MPX_ITOT
TPX3_TOA_TOT
TPX3_TOA
TPX3_MPX_ITOT
TPX3_TOA_TOT
TPX3_TOA
TPX3_MPX_ITOT

Function Documentation

encodePixelData()

void encodePixelData	(	uint8_t *	data,
		const uint8_t	col_shift_num,
		const TPX3PixelMode_t	pixel_mode
	)

encoders pixel data from the RAW form recorded by the timepix

Parameters

data	pointer to 6 x uint8_t of data
col_shift_num	= 4
itot	= false

Variable Documentation

LUT_COLSHIFTS

const uint16_t LUT_COLSHIFTS[1280]

LUT_EVENT

const int16_t LUT_EVENT[16]

LUT_ITOT

const uint16_t LUT_ITOT[16384]

LUT_TOA

const uint16_t LUT_TOA[16384]

LUT_TOT

const uint16_t LUT_TOT[1024]
